Features

• Strongest design available in enclosures.
• Perfect Strength to weight ratio.
• Better Ingress protection (Up to IP-55)
• Multi color powder coating is possible.

Sub-assemblies

• Frame structure : 3.00 thk folded CRCA sheet with vertical and horizontal (depth) indexing holes of dia 9 & dia 4.2 in pitch 12.5mm.
• Base : 3.00 thk folded sheet with removable front and rear cover in 2.00 thk.
• Door : Front & rear single door split door /partial door in 2.00 thk CRCA sheet. With support channels, sheet metal special hinges, 3/4 point handle lock.
• Cover : Front fixed bolted cover in 2.00thk for instrumentation panel in place of door. when door not necessary at rear screwed cover in 1.5 thk.
• Gland plate : Varying combination like, Folded CRCA bottom cover or Slotted / perforated bottom cover in 1.5 thk (for ventilation from bottom if required).
• Side cover : Screwed side cover in 1.5 thk CRCA sheet.
• Top cover : in 1.5 thk CRCA bolted in lifting eye bolts itself.

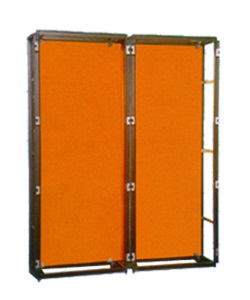

• C' Plate : In 2.00 thk / 3.00 thk as per requirement maximum size is (W-100) x (H-100) 9) Inter panel separator : Made in 1.5 thk vertical or horizontal.
• Lifting eye bolts : Hooks are used for normal weight & heavy duty angles for bigger enclosures.
• 19" Rack : Din Standard 19" equipment mounting arrangement is possible.
• 19" Swing frame : suitable for 19" mounting in width and height as per requirement

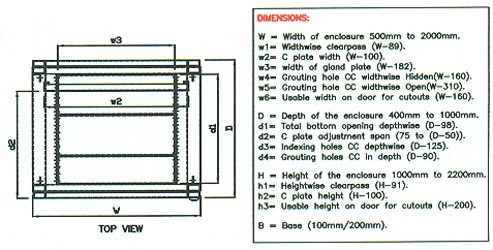

Standard Sizes

Width	Depth	Height	Base
500mm-2000mm (pith of 100mm)	400mm-1000mm (pith of 50mm)	1000mm-2200mm (pith of 100mm)	75mm, 100mm 150mm, 200mm

Up to 1000mm width single door can be provided & above 1000mm split doors are recommended.

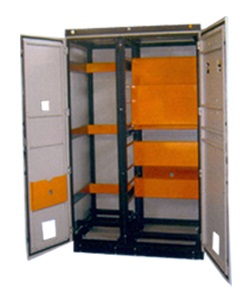

Up to 1200mm width single welded structure can be provided & above 1000mm two Separate structure or twin welded structure is recommended.
